Fill Tube Cut-Length Calculator

95% shutoff setting · All measurements are in inches

Description / Location

Identify the tank or fill point for the printed record

Valve model

Non-testable 71SO Testable 71SO

100% tank-chart reading

Dipstick number corresponding to 100% volume

Total tank capacity

Tank's rated capacity in gallons

gal

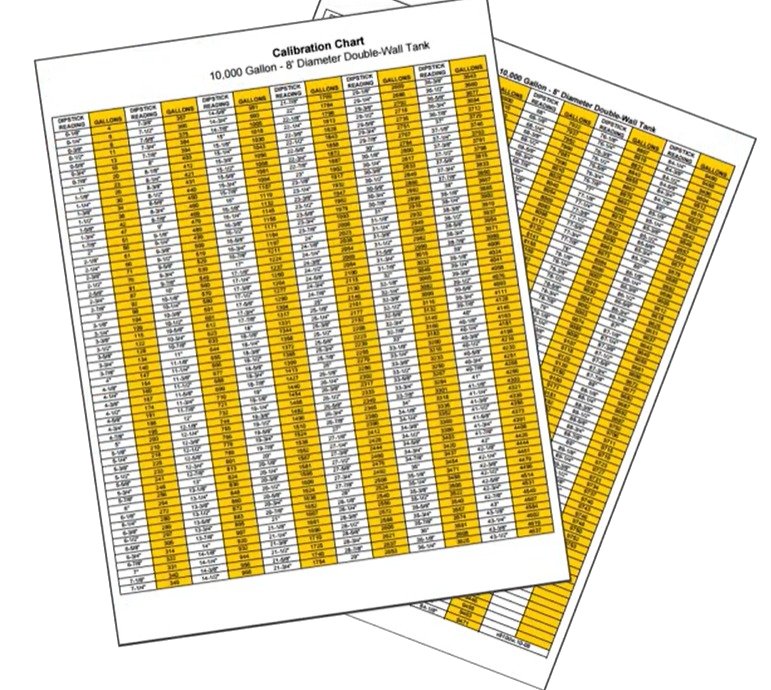

95% tank-chart reading

Enter the dipstick reading for the nearest chart volume shown above

Sealing surface to tank top

Measure to the inside top of the storage tank

Sealing surface to tank bottom

Total measured depth to the bottom of the tank

Before cutting

Use the actual 95% dipstick value from the tank chart. Do not calculate it as 95% of the 100% reading.
Confirm measurements and model against the current manufacturer installation manual.
The valve body must extend at least 6½" into the tank. Minimum total length is 16" for non-testable or 14½" for testable models.
Account for tank tilt, manways, local requirements, and the correct sealing surface.
